X Ray Baggage Scanner Machine with 500(W) *300 (H) Tunnel Size MCD-5030A

FOB Reference Price:Get Latest Price
US $4,600-6,999 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-5030A
Tunnel Size:
500(W)*300(H) mm
Conveyor Speed:
0.22m/s
Conveyor Max Load:
170kg
Dose per Inspection:
<2.9 μGy/h
Penetration:
8mm Steel
Operation temperature/Humidity:
0℃-45℃/20%-95% (non-condensing)
Storage Temperature/Humidity:
-20℃-60℃/20%-95% (non-condensing)
Noise:
<65db
Operation Power:
220VAC (±10%)50±3Hz
Supply Ability
Supply Ability:
300 Set/Sets per Month X Ray Baggage Scanner
Packaging & Delivery
Packaging Details
wooden case package
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 3 To be negotiated

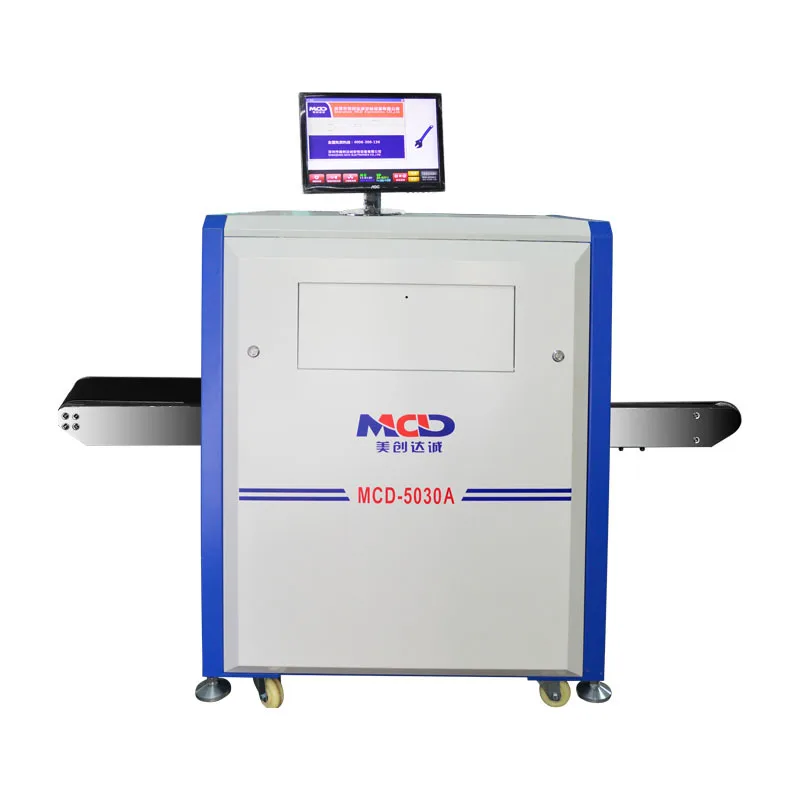

MCD-5030A X Ray Baggage Scanner Machine with 500(W) *300 (H) Tunnel Size





Product Description



Specification

  • Tunnel Size: 500(W)*300(H) mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 20kg
  • Dose per Inspection: <2.9 μGy/h
  • Resolution: <0.101mm Metal Wire
  • Penetration: 8mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)



X-ray Generator

  • Generate direct: Upward
  • Generate angle: 60 degree
  • Anode Voltage: 80Kv
  • Anode power: 0.4 to 0.5mA
  • Cooling / Duty Cycle: Oil Cooling /100%

Image System

  • X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • Monitor: High Resolution Color, LCD Accord, 17 inch
  • Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
  • Image Grey Level: 4096
  • Image Max Resolution: 1024 * 1280 pixel
  • Image Processing: 24bit for processing real time
  • Image storage: Storage 60000 pictures in real time
  • Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Installation Data

  • Operation temperature/Humidity: 0°C-45°C/20%-95% (non-condensing)
  • Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
  • Operation Power: 220VAC (±10%)50±3Hz
  • Power Consumption: 1.0 KW (max), 0.3KW (working)
  • Noise: <65db



Application













Packaging & Shipping



Packed in strong wooden case







Shipping by express, sea, air, for your optional





Company Information

*Established in 2005

*With more than 300 people, among of which R&D 15 staffs, QC 22 people

*Main products:  X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground                                                     Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.

*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.

*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP

*Area: 12,000 Square meters

Annual sales turnover of 2014: USD20million







Our Services



Quality:

  1. First of all, we promised that all the products are brand-new.
  2. Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
  3. Thirdly, we package the products by superior high quality carton or wooden case to ensure the completeness and low delivery loss.
  4. If you have any problems when receive the products, pls kindly contact our aftersales team.

Shipping:

  1. We only support world-famous Express companies (EMS, DHL, UPS, FedEx etc.), faster and safer by airline, except Long range detectors which set batteries inside (TX-MPI, VR1000BII, VR Long Range King). For reducing our shipping fee, large size articles (Walk Through Metal Detector, X Ray Baggage Scanner, Needle Metal Detector etc.) will go Ocean shipping.

Warranty:

  1. Within one month, if you’re not satisfied with product or product damaged (Not man-made), you could change unconditionally. Return shipping cost on buyer's account.
  2. 12 months warranty for all accessories and lifelong service. Online video instruction and training is available
