High Well performance Professional door frame metal detector MCD-500C infrared body temperature detector

FOB Reference Price:Get Latest Price
$750.00 - $1,150.00 / Sets | 5 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
waterproof and fireproof
with LCD display:
well and high quality control:
small order acceptable:
customer's design and logo are welcomed:
door frame metal detector
18 zones
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
both carton case and wooden case can be supplied.
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 3 To be negotiated

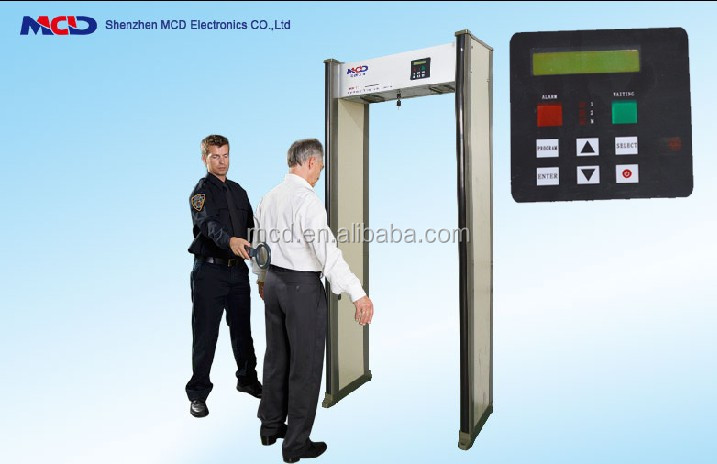

High performance Professional door frame metal detector MCD-500C

infrared body temperature detector



Main Feature: 18 Detection Zones  LED indicate  LCD display  Waterproof  Fireproof  Remote control


Function and Feature:


Single line LCD display.PD-6500I system designed.


Made of durable waterproof alloy construction& strong PVC synthetic material.


All system parameter setting and operation can be achieved by remote control.


Accurate scanning speed of electromagnetic waves were produced by micro computer controller,flexible,reliable and steady sensitivity setting.


Complex circuit design,extra infrared devices can reduce false alarm and omissions effectively.


Digital pulse technology have excellent anti-electromagnetic interference capability.


EMC technology to generate quite a strong capability of anti-disturbance of electromagnetism through the digital filtering of DSP.advanced digital signal processing control replaced traditional analog signal control, better stability.


Easy assembly.


Self diagnosis during power on.


Sensitivity adjustments up to 100 levels and they are user selectable for each zone.


Detects all kinds of metallic objection,included iron,stainless steel,copper,zinc,alloy etc.


Indication of alarming zones on two sides of metal detecting door.


Simultaneous alarm from muti- zones.


Automatically count alarm times and people numbers of passing through on digital panel.


Password protection function to avoid tampering.


Harmless to pregnant women,disks,video tapes etc.


Technical parameters:


Power supply: AC 100 to 240V, 50/60Hz


Power: < 30W


Signal Frequency:6-9khz(adjustable)


Operation Temperature:-20°C ~ 70°C


Through rate: more than 60 persons / per minute.


Weight: about 65kg


Delivery weight: about 90kg.


Overall size: 2230 mm (height)*820 mm (width)* 630 mm (depth)


Tunnel size: 2000 mm (height) *700 mm (width)* 560 mm (depth)
