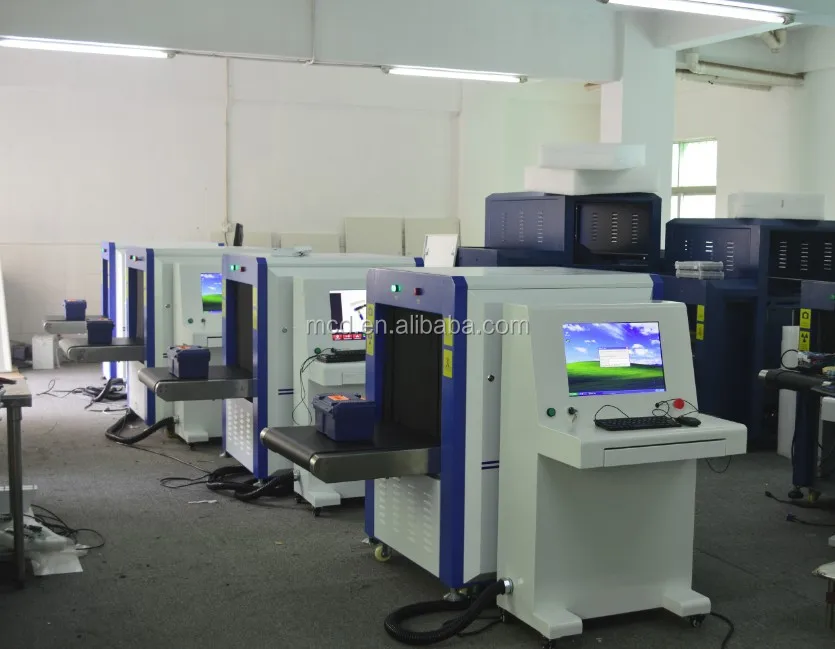

High Quality X-Ray Baggage Scanner Equipment With High Resolution and Inspection System For Airports/Government MCD-6550

FOB Reference Price:Get Latest Price
US $8,848-11,599 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-6550
Tunnel Size:
650(W)*500(H)mm
Conveyor Speed:
0.22 m/s
Conveyor Max Load:
170 kg
Dose per Inspection:
<1.4 uGy/h
Resolution:
<0.0787mm Metal Wire
Penetration:
34 mm Steel
Film Safety:
Guarantee ISO1600 Film
Generate direct:
Upward
Generate angle:
80 degree
Anode Voltage:
100-160Kv
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case package
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 3 To be negotiated

High Quality X-Ray Baggage Scanner Equipment With High Resolution and  Inspection System For Airports/Government



Product Description

 Product Parameters:



General Specification:



Tunnel Size650(W)*500(H)mm
Conveyor Speed0.22m/s
Conveyor Max Load170kg
Dose per Inspection<1.4uGy/h
Resolution<0.0787mmMetal Wire
Spatial resolution Leveldiaφ1.0mm , Vertical:diaφ1.0mm
Through resolutionφ0.254mm
Penetration34mm Steel
Film SafetyGuarantee ISO1600 Film
X-ray Leakage0.05 uGy/h (at a distance of 5cmFrom external housing)




 X-ray Generator:

  • 1.Generate direct: Upward
  • 2.Generate angle: 80 degree
  • 3.Anode Voltage: 100~160Kv
  • 4.Anode power: 0.4 to 1.2mA
  • 5.Cooling / Duty Cycle: Oil Cooling /100%



Image System:



X-ray Sensor L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
MonitorHigh Resolution Color, LCD Accord, 17 inch
Detector2
Color displayfull color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing  darkening, image returning, image retrieval.

Image Grey Level4096
Image Max Resolution1024 * 1280 pixel
Image Processing24bit for processing real time
Image storageStorage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

 continuous observation

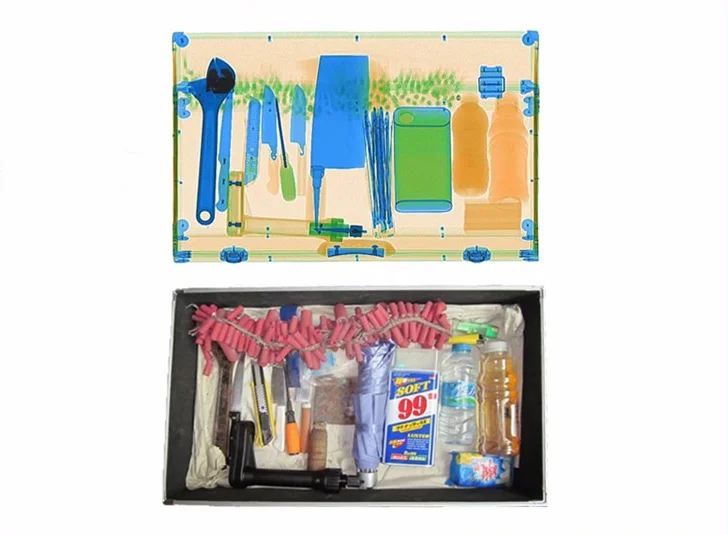

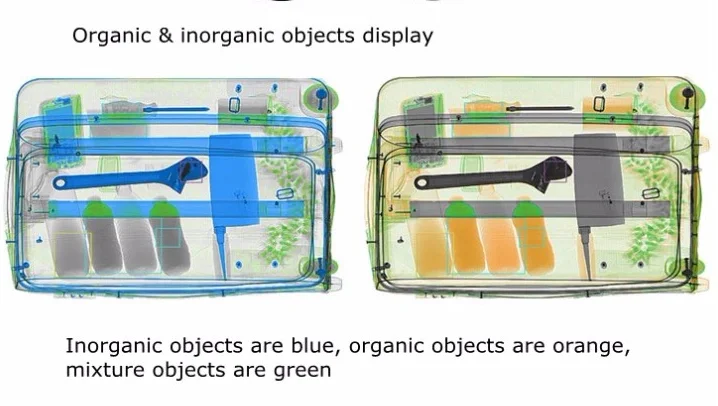

Multi-energeti       distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

 High-energy/low energy

 switch from high energy to low energy





 Installation Data:

  • 1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)
  • 3.Operation Power:220AVC/(±10)50Hz±3Hz
  • 4.Power Consumption:1.0KW(Max)
  • 5.Noise: <65 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked

eye can not see where the liquid is also very obvious object display.Used in the factory testing of

security products and business units such as: electronic factories, shoe factories, toy factories,

courts, railway stations, and event bag, line security management package
