Well Quality Body Scanner Walkthrough Metal Detector MCD-300 gate type metal detector

FOB Reference Price:Get Latest Price
$500.00 - $660.00 / Sets | 5 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
waterproof materail
Modular design::
convent installation and easy to rule out failure
6 zones
Adjustable sensitivity::
Each detecting area has 100 sensitivity level may
220V AC, 50/60Hz.
Working environment::
-10 °C ~ 45 °C, ≤ 95% RH.
machine weight::
about 80kg.
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton box
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 3 To be negotiated

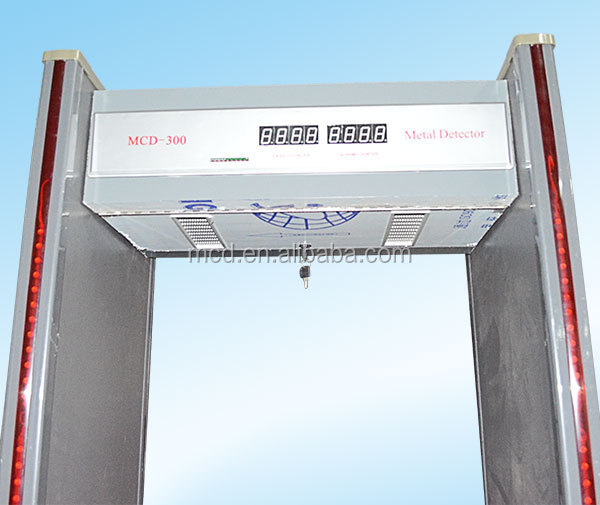

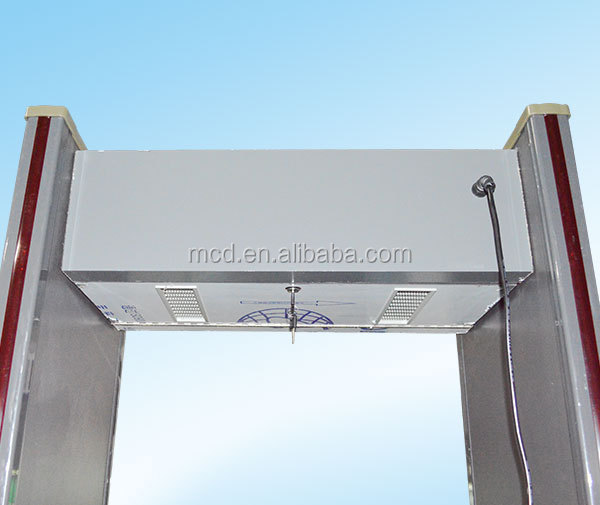

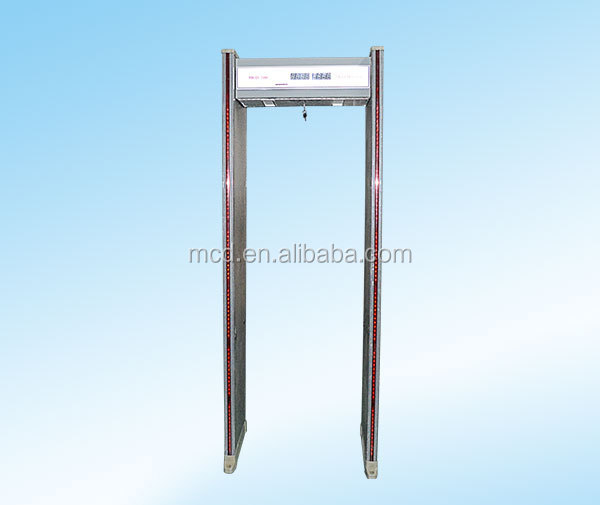

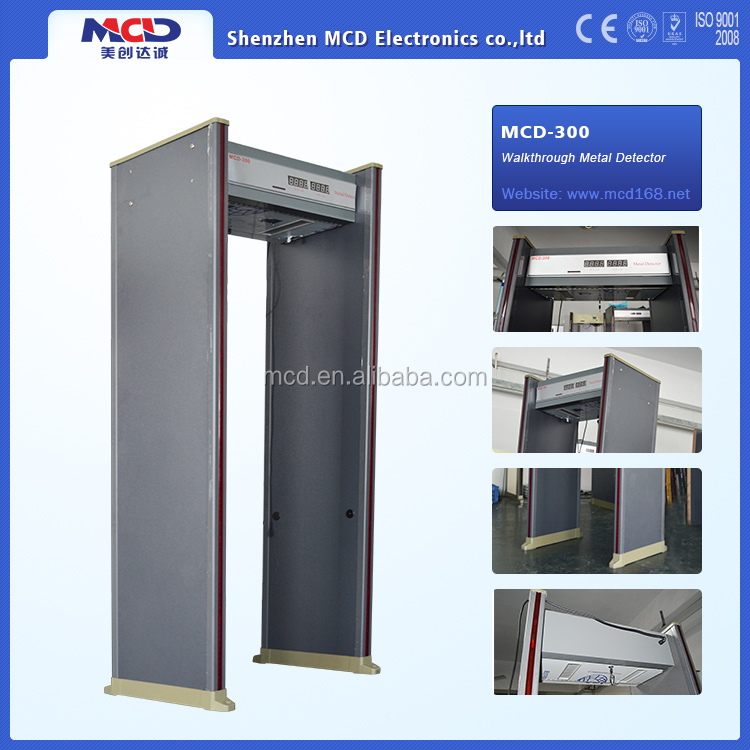

Quality Body Scanner Walkthrough Metal Detector MCD-300

Function introduction:

  • Detect the region without blind spots uniformly
  • Precise positioning: average distribution of six independent detection region to detect the target,
  • Sound and light alarm simultaneously
  • With both sides column LED alarm lights:  accurately positioning, visual display of digital objects
  • Modular design: convent installation and easy to rule out failure.
  • Self-diagnosis functions: built-in self-diagnostic procedures, power-on self test
  • Microprocessor technology:  more flexible control , the control panel can be programmed all default parameters to meet the users'  requirements
  • Complex circuit design, infrared devices, computer automatic identification, can effectively reduce false positives and omissions
  • Dynamic statistical report pf the pass through rate and the alarm frequency
  • DSP digital signal processing filter systems, have excellent anti-electromagnetic interference capability and strong resistance touching collision capacity, can deal with the occasion of crowed pass through
  • Adjustable sensitivity: Each detecting area has 100 sensitivity level may require adjustment in accordance with the appropriate detection Sensitivity.
  • Three sets of stored criteria for good regulation to fit different occasions and special chemicals.
  • Equipped with remote control: more convenient and easy to operate.
  • Continuous job performance, can not escape detection at any time.
  • Can automatically measure and display around the environment interference, and help to select the installation site.
  • Password-protected settings: only allow the operator to modify the parameters
  • Complied with current international safety standards, the use of weak magnetic field emission technology has no harm to pacemakers revolver persons, pregnant women, floppy disks, video tapes and other sound.

 Technical parameters

  • Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards.
  • Detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
  • Basic safety: meeting the requirements of GB4793.
  • Personal safety: Satisfied NILECJ-0601.
  • Through rate: more than 60 million / per minute.
  • Power: 220V AC, 50/60Hz.
  • Power: 35VA.
  • Working environment: -10 °C ~ 45 °C, ≤ 95% RH.
  • Overall dimension: 2220 mm (high) × 820 mm (width) × 500 mm (deep).
  • Channel Size: 2000 mm (high) × 700 mm (width) × 500 mm (deep).
  • machine weight: about 80kg.
