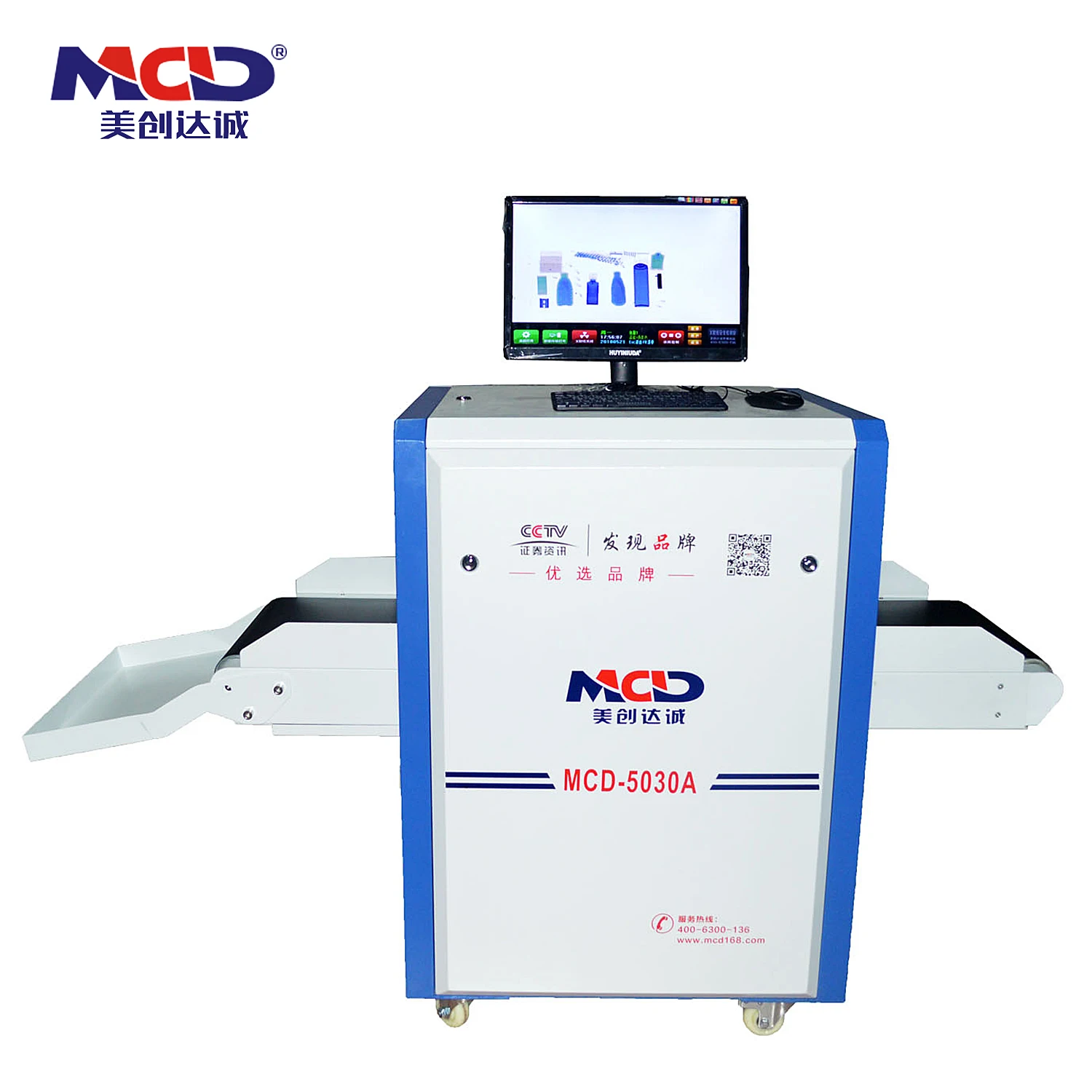

MCD-5030A x ray scanner mobile with film safety

FOB Reference Price:Get Latest Price
US $4,600-6,900 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-5030A
Tunnel Size::
500(W)*300(H) mm
Conveyor Speed::
0.22m/s
Conveyor Max Load::
20kg
Dose per Inspection::
<2.9 μGy/h
Penetration::
8mm Steel
Operation temperature/Humidity::
0℃-45℃/20%-95% (non-condensing)
Storage Temperature/Humidity::
-20℃-60℃/20%-95% (non-condensing)
Noise::
<65db
Operation Power::
220VAC (±10%)50±3Hz
Supply Ability
Supply Ability:
200 Set/Sets per Month x ray scanner mobile
Packaging & Delivery
Packaging Details
standard package
Port
shenzhen
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 5 To be negotiated

MCD-5030A x ray scanner mobile with film safety



Specification

  • Tunnel Size: 500(W)*300(H) mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 20kg
  • Dose per Inspection: <2.9 μGy/h
  • Resolution: <0.101mm Metal Wire
  • Penetration: 8mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)



X-ray Generator

  • Generate direct: Upward
  • Generate angle: 60 degree
  • Anode Voltage: 80Kv
  • Anode power: 0.4 to 0.5mA
  • Cooling / Duty Cycle: Oil Cooling /100%

Image System

  • X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • Monitor: High Resolution Color, LCD Accord, 17 inch
  • Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
  • Image Grey Level: 4096
  • Image Max Resolution: 1024 * 1280 pixel
  • Image Processing: 24bit for processing real time
  • Image storage: Storage 60000 pictures in real time
  • Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
  • 5030A 1.jpg

Installation Data

  • Operation temperature/Humidity: 0°C-45°C/20%-95% (non-condensing)
  • Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
  • Operation Power: 220VAC (±10%)50±3Hz
  • Power Consumption: 1.0 KW (max), 0.3KW (working)
  • Noise: <65db

.jpg



Application:

         Used in the factory testing of security products and business units such as: electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package






Our company:



.jpg



Certification:



.jpg

If you have any questions, pls feel free to contact us, you’ll be replied prompt!
