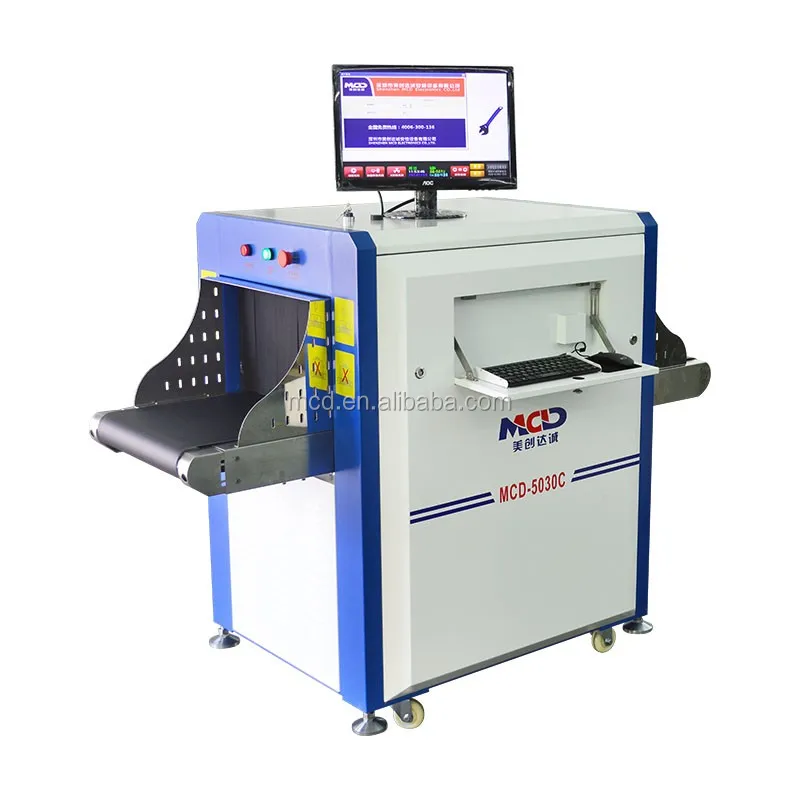

Real time Small size X-ray inspection machine baggage scanner MCD-5030C

FOB Reference Price:Get Latest Price
US $6,800-11,800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-5030C
Detecting method:
x-ray bollom-illuminated
Warranty:
1 year
Tunnel size:
500w*300H mm
Conveyor speed:
0.2m/s
Conveyor max load:
50kg
System power:
220AVC/50Hz
Single inspection dosage:
<1.5uGy
Power wastage:
1.0kw(max)
SupplyAbility
SupplyAbility:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case package
Port
Shenzhen
Lead Time :
within 5 days after received payment

Real time Small size  X-ray inspection machine baggage scanner MCD-5030C






Product Parameters:



1. Detecting Method: X-Ray Bollom-illuminated detecting



2. Tunnel Size: 500(W)*300(H) mm



3. Conveyor Speed: 0.22m/s



4. Conveyor Max Load: 150kg



5. Single inspection dosage: <1.5uGy



6. Wire Resolution: 0.1mm metal line



7. Steel Penetration: 34MM metal line



8. Maximum leakage radiation: <0.05uGy/h



9. System Power: 220AVC/50Hz



10. Power wastage: 1.0KW(Max)



11. Noise: <65 dB



12. Operating Temperature: 0℃~45



13. Storage Temperature: -20℃~60





Feature and Application:





X-rays through inspection, Which show object interior metal structure by LCD screen. Applied to factory inspection products and institutions of the security. Such as electronic factory, shoe factories, toy factories, court and station, as well as large activities handbag security.

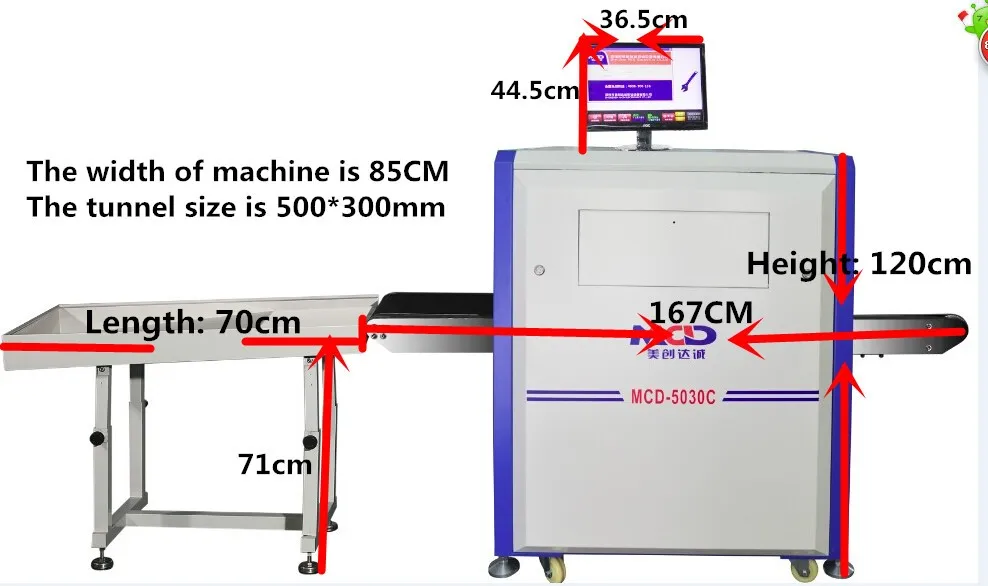

3x-ray scanner.....MCD-5030C (SIZE)

X-ray luggage scanner.JPG

X-ray luggage detector.JPG



Our company:





Established in 2005





*With more than 300 people, among of which R&D 15 staffs, QC 22 people



*Main products: X-Ray Luggage Scanner, Handheld Metal Detector, Food Metal Detector, Underground Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector.



*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.



*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP



*Area: 12,000 Square meters

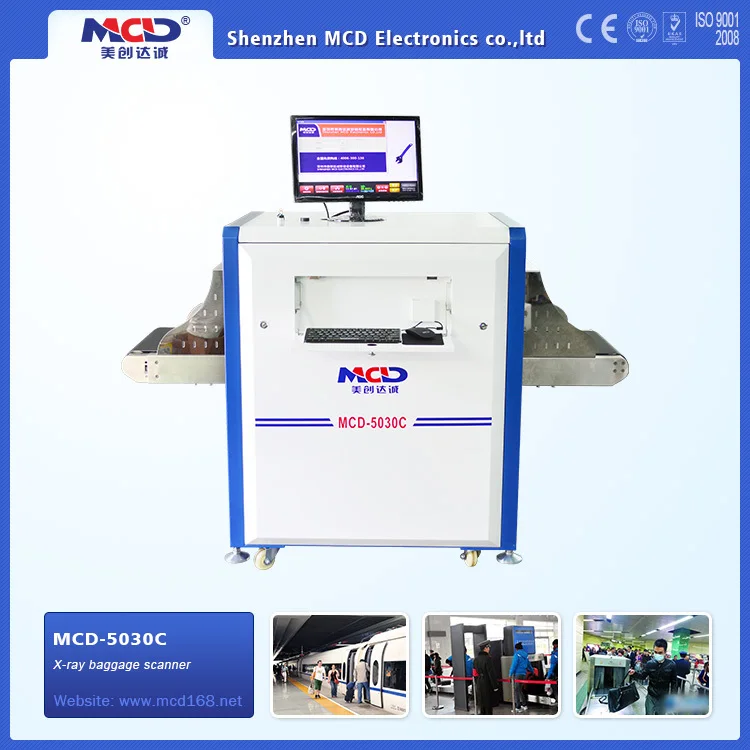

 x ray baggage scanner.jpg




Special features:


1) Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time.


2) Safety x-ray control: X-ray is transmitted under automatic control, avoiding the error.



3) One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient.


4) Environmental protection design: Protective cover on lead curtain to avoid lead pollution.


5) Energy saved design:the machine can check the tunnel automatically to see whether there are objects. The conveyor belt will run only when there is object on it. Otherwise, it is no run.


6) Easy learning and Easy operation: offer user-friendly interface.


7) Super large Image storage:1,000,000 pictures in real time
