Large X-Ray baggage scanner MCD-10080

FOB Reference Price:Get Latest Price
US $15,000-22,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-10080
Detection mode:
x-ray top shine detecting
Tunnel Size:
1000(W)*800(H)mm
Warranty:
1 year
Penetrating power:
40 mm steel plate
Conveyor max load:
200kg
Power consumption:
1kw(max),1.0KW(working)
Conveyor Speed:
0.22m/s
Noise:
<58 dB
System Power:
220AVC/50Hz
Color:
White/Blue
SupplyAbility
SupplyAbility:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case package
Port
shenzhen
Lead Time :
within 5 days after received payment

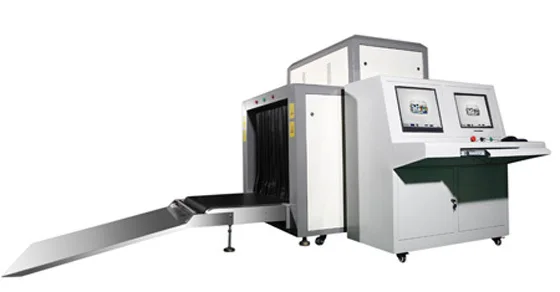

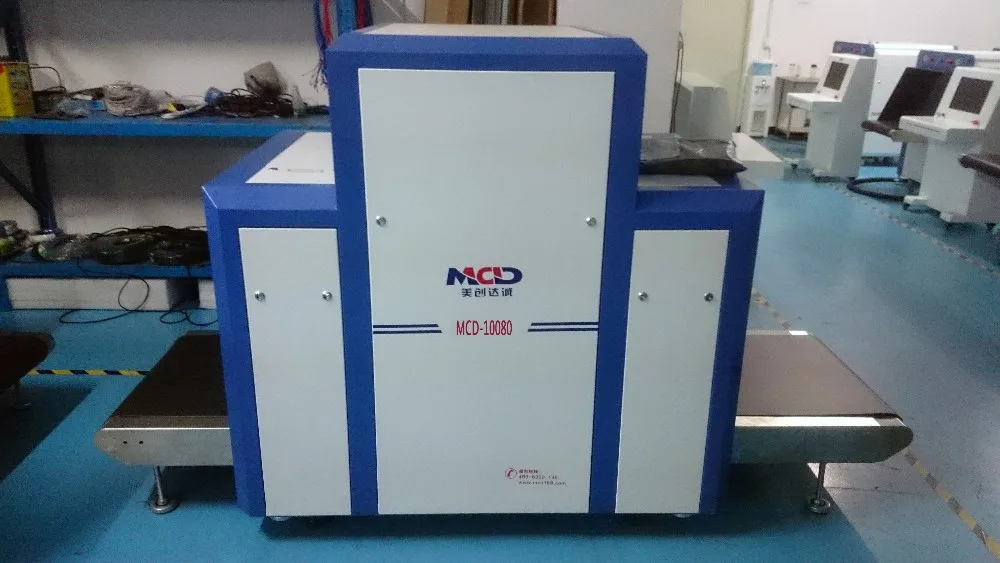

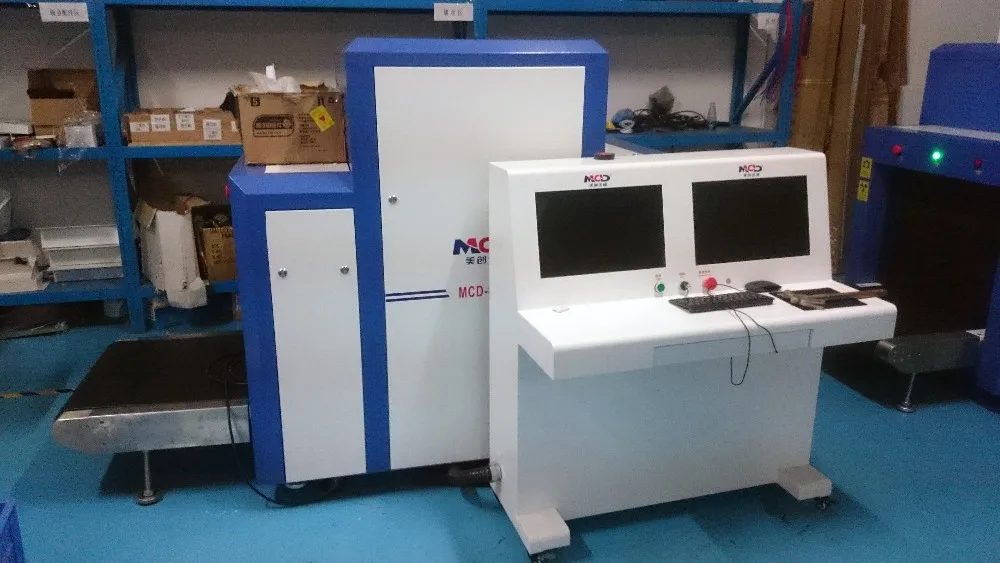

             Large X-Ray luggage scanner MCD-10080



MCD-10080 X RAY INSPECTION MACHINE.jpg







Specifications

1.American SPELLMAN Generator
2.Japanese HAMMATSU Detector
3.Germany INTERROLL Roller

General Specification

1,Tunnel Size 1000(W)*800(H) mm

2,Conveyor Speed 0.22m/s

3,Conveyor Max Load 250kg

4,Dose per Inspection < 1.7μGy/h

5,Resolution < 0.101mm Copper Wire

6,Spatial resolution Level: dia1.3mm, Vertical: dia1.0mm

7,Penetrate  resolution Dia 0.511mm

8,Penetration 34mm Steel

9,Film Safety Guarantee ISO1600 Film

10,X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)



X-ray Generator

1,Generate direct Downward

2,Generate angle 80 degree

3,Anode Voltage 100~160Kv

4,Anode power 0.4 to 1.2mA

5,Cooling / Duty Cycle Oil Cooling /100%

Baggage Scanner (5)27airport_X_ray_baggage_scanner_large_cargo10080



 10080

Image System

1,X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

2,Monitor High Resolution Color, LCD Accord, 17 inch

3,Image Processing Edge enhancement, image strengthening, image lightening,, reducing darkening,

image returning, image retrieval.

4,Image Grey Level 4096

5,Image Max Resolution 1024 * 1280 pixel

6,Image Processing 24bit for processing real time

7,Image storage Storage 60000 pictures in real time

8,Zones & Zoom 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

9,Multi-energetic distinguish objects organic objects in orange, inorganic objects in blue, mixture  in green

10,High-energy/low energy switch from high energy to low energy

Assist to detect drug and explosive powder



Installation Data

1,Operation temperature/Humidity 0°C-45°C/20%-95%(non-condensing)

2,Storage Temperature/Humidity -20°C-60°C/20%-95%(non-condensing)

3,Operation Power 220VAC(±10%)50±3Hz

4,Power Consumption 1.0 KW (max)

5,Noise: <58db
