Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-100
  • Alarm way: audio alert and LED location lamp work together
  • Detection zone: single zone
  • Display way: 8 status led display
  • Sensitivity: 0-99 adjustable
  • Warranty: 1 year
  • Tunnel Size: 200*68*56cm
  • Dimension Size: 222*80*67cm
  • Net weight: 46kg
  • Certificates: CE/ROHS/ISO9001
  • Temperature: -20C-75C

Packaging & Delivery

Packaging Details carton box package 224.5*56.5*16(2 pcs/carton) 74.5*24.5*36(1 pc/carton)
Delivery Time within 5 days afterreceived payment

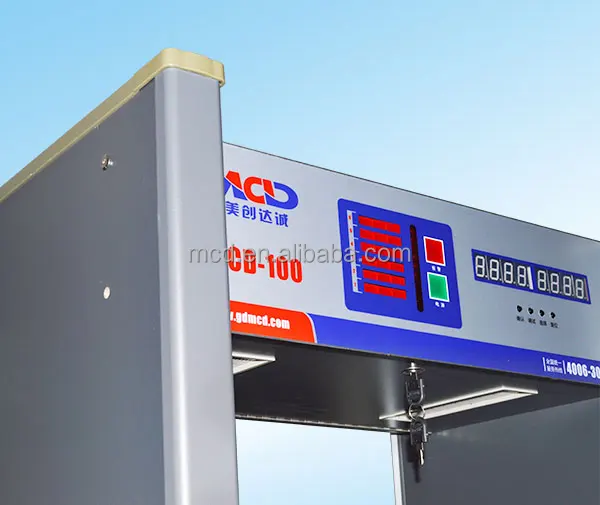

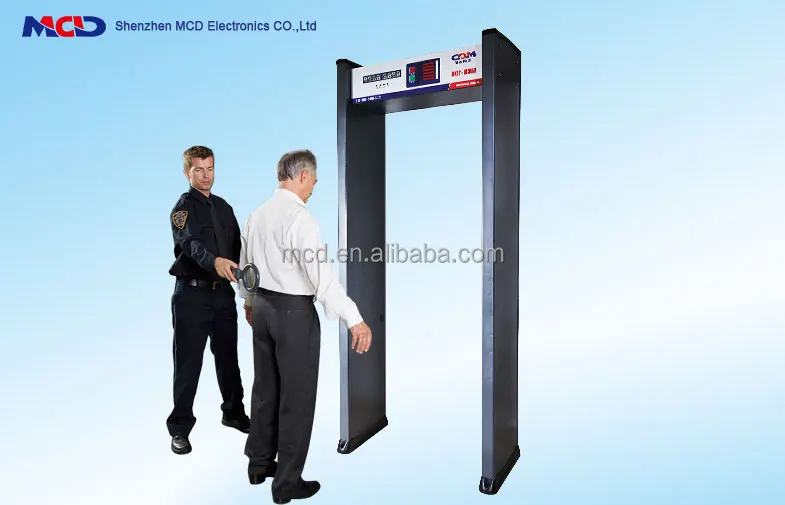

Professional Walkthrough Metal Detector Apply To Factory, Court, Gym, Concert, Jail MCD-100

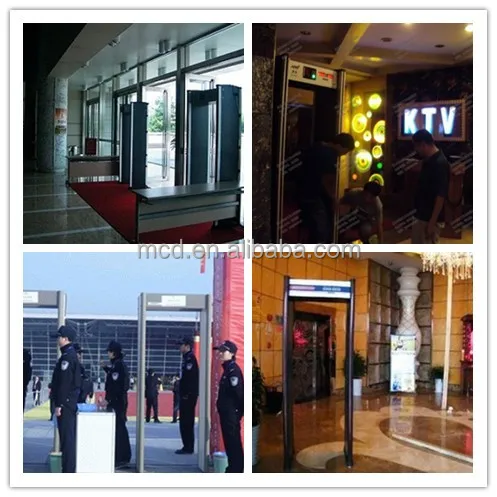

It is economical, practical and cheap, mainly match moderate detection requrement places such as nightclubs. With body height detection design and built-in electromagnetic fields, metal items  carried by human can be generated through the alarm device, items like various control tools, weapons, metal products, electronic products and other items containing metal and so on.  As a anti-theft examination an effective tool, mainly used in government agencies, public security organs , prosecution, courts, prisons, detention centers, customs, airports, stations, stadiums, convention venues, entertainment, large gathering places, etc., as well as hardware, electronics, jewelry, military, Mint factories or businesses.

Function introduction
  • Detect the regions without blind spots unforrmly
  • Precise positioning: average distribution of six independent detection regions to detect the targets
  • Sound and light simultaneously alarm
  • Panel LED light : Show the targets locatiosns precisely
  • Modular design: convenient installation and easy to rule out failure.
  • Self-diagnosis functions: built-in self-diagnostic procedures, power-on self test,
  • Microprocessor technology: more flexible control , the control panel can programme all the parameters default to match the users'requirements
  • Complex circuit design, infrared devices, computer automatic identification, can effectively reduce false positiions and omissions
  • DSP digital signal processing filter systems: have excellent anti-electromagnetic interference capability and strong resistance to touch, so can deal with the occasion of crowed passthrough
  • Adjustable sensitivity: Each detection region has 100 sensitivity level may require adjustment in accordance with the appropriate detection sensitivity.
  • Three sets of stored stored criteria for good regulation to fit different occasions and special chemicals.
  • Equipped with remote control, operation more convient and easy.
  • Continuous job performance, can not escape detection at any time.
  • Can automatically measure and display the interference of the surrounding environment to help to select the installation site.
  • Password-protected settings: Only allow the professionals to modify the parameters
  • Complied with current international safety standards, the use of weak magnetic field emission technology , has no harm to pacemakers wear Persons, pregnant women, floppy disks, video tapes etc.

Technical parameters

  • standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards.
  • detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
  • basic safety: meeting the requirements of GB4793.
  • personal safety: Satisfied NILECJ-0601.
  • through rate: more than 60 million / per minute.
  • Power: 220V AC, 50/60Hz.
  • Power: 35VA.
  • working environment: -10 °C ~ 45 °C, ≤ 95% RH.
  • Overall dimension: 2220 mm (high) × 820 mm (width) × 500 mm (deep).
  • Channel Size: 2000 mm (high) × 700 mm (width) × 500 mm (deep),
  • machine weight: about 80kg.
