2019 New Food Metal Detector Machine High Sensitivity and Stability Food Metal Detector MCD-F500QF

FOB Reference Price:Get Latest Price
$1,500.00 - $1,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MCD-F500QF
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Detecting height:
10-50CM(Customized)
Detecting width:
40-120cm(Customized)
conveyor belt speed:
25m/min
sensitivity adjustable:
0-10 level
type of alarm:
The buzzer alarm, the motor automaticallys stop
Power supply:
AC100-265V,50-60Hz
Alarm Method:
BuzzerLED indicator twinkles and shutdown automatically
warranty:
1 year
size:
165*100*95cm
weight:
200kg
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case package 1620*875*1035
Port
Shenzhen
Picture Example:
package-img
Video Description

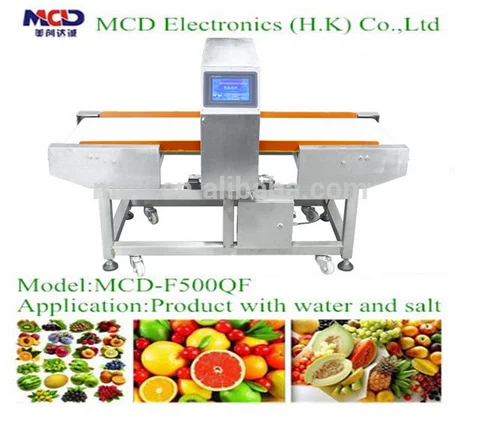

2019 New Food Metal Detector Machine High Sensitivity and Stability Food Metal Detector MCD-F500QF

Product Introduction:

MCD-F500QF is new arrival food metal detector.Not only it has MCD-F500QD and MCD-F500QE all advantages.like touch screen,10 level adjustable sensitivity and memory 10 kinds of products etc.But also it has more higher reliablity and stablity on check products with water and salt.



Product Parameters:

1.Detection method: the electromagnetic wave detection, the new analog circuits and digital circuits combined

2.Detection width : 45-80 cm, Customized

3.Detection: height: 10-50cm Customized

4.Sensitivity adjustable

5.Detection sensitivity:0.6mm-6.0mm iron ball, 1.5-10.0 Stainless steel

6.Alarm mode: The buzzer alarm, the motor automatically stop

7.Transfer speed: 40 meter / mins

8.Power: 100-265VAC, 50-60Hz

9.Size: (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H) (Demand can be made)





Performance:

1. Dual-loop design, can be detected separately iron and non-ferrous metal impurities, the high

detection sensitivity can be separately adjusted to operate a very convenient and can detect  food

packaging aluminum platinum.
2. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
3. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
4. Can and weighing machines, sorting machines combination to form a pipeline automatically detects weighing.
5. Production line can be used to connect supporting the implementation of automatic detection pipeline.
6. Monitor the use of sound and light alarm, automatically exclude or shutdown, the operational

use of extremely reliable and user-friendly.
7. Machine using stainless steel material, anti-corrosion, easy to clean (which can be required

 in accordance with the ordinary customers of steel stainless steel materials may be appropriate to reduce costs).

Model

MCD-F500QF

Detection sensitivity

Fe

≥ Φ0.6mm

≥ Φ1.2mm

≥ Φ3.0mm



SUS

≥ Φ1.5mm

≥ Φ2.2mm

≥ Φ5.0mm

Window height

100mm

150mm

300mm

Alarm mode

Sound and Light alarm,motor auto-stop

Environment

Temperature 0-40°C,humidity less than 80%

(avoid freezing,condensation)

Power supply

100-256V AC,50-60HZ



Features and Application:

Microcomputer intelligent automatic metal detector uses a dual-loop circuit design, 7-inch full color LCD touch screen, this is a full metal detection equipment, high detection sensitivity can be detected iron and non-ferrous metal objects, the sensitivity can be adjusted separately.with memory can be stored 10 kinds of test substances, exclusion, break through the technical bottleneck of most of the equipment only on the magnetic material responsive to the product with water and frozen products. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel, anti-corrosion, no rust, easy to clean.

this machine is widely used in the detection of meat, mushrooms, candy, drinks, food, fruits and vegetables, dairy products, aquatic products, health products, additives and flavorings and other food-ferrous metals and non-ferrous metal impurities. Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.
