Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-V7D
  • camera: high definition CMOS chips
  • screen size: 4.3 inch multi-media screen
  • connecting rod length: 3.1M
  • supplementary lighting: strong white light
  • usage: under vehicle surveillance system
  • Camera casing:: Stainless steel 304
  • Camera light source:: 12 LEDs
  • Working temperature:: -10℃-50℃

Packaging & Delivery

Packaging Details: aluminum box packing
Delivery Detail: 3-7days usually

Specifications

V7D is our latest developed HD Under Vehicle Camera with DVR recording function,vehicle tracking system







Product Description

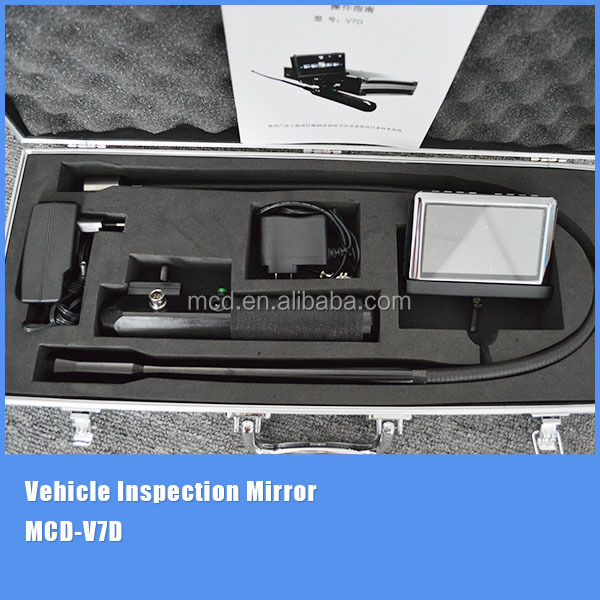

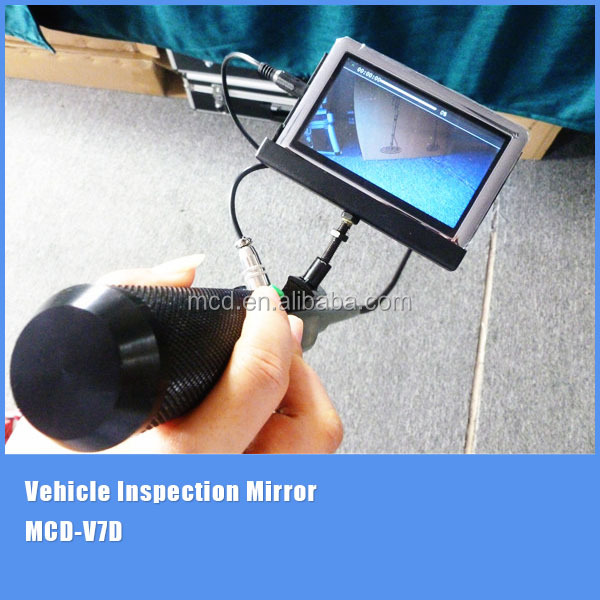

 MCD-V7D Under Vehicle Inspection System For Bomb Detecting









Product Introduction:

Thank you for purchasing the product! V7D is our latest developed HD Under Vehicle Camera with DVR recording function, it helps security personnel to check clearly on front video display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify troublesome inspection work and help save plenty of valuable time, improving security check efficiency. The product uses high-capacity Lithium battery for power supply which lasts 8 hours, avoiding frequent battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment from damage by drop, shock or press.



Product Parameters:

Waterproof  Camera:

1.Dimension: 23mmx50mm.

2.Flexible pipe: 940mm

3.Camera casing:Stainless steel 304

4.Camera lens: Sapphire blue

5.Sensor dimension:1/4 inch

6.Senor pixel:PAL@720X576/NTSC: 720X480

7.Lens visible angle: 120 degrees

8.Camera adjustable angle: Arbitrary angle

9.Camera light source: 12 LEDs

10.Waterproof standard: IP68

11.Working voltage: DC 12V, working current: 100mA

12.Max length: 1.16m

13.Working temperature:-10-50





LCD Screen:

1.LCD dimension: 4.3-inch, 16:9

2.Resolution:480*320*RGB

3.Power supply:5V DC(Built-in Li-ion battery)

4.Noise:85Db

5.USB interface:2.0(High speed)

6.Output power:20Hz---20KHz



Feature and Application:

It is used for inspection the container and other special occasions if they are normal.Also search life after the earthquake.



 LCD dimension: 4.3-inch, 16:9



Resolution:480*320*RGB



Power supply:12V DC Built in lithium battery







Feature and Application:



It is used for inspection the container and other special occasions if they are normal.Also search life after the earthquake.
