Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-F500QD

Packaging & Delivery

Packaging Details wooden boxes
Delivery Time 3-8 days after payment

Specifications

food metal detector
1.LCD screen ,easy to operate
2.304 stainless steel material, waterproof design
3.Digital circuit outp

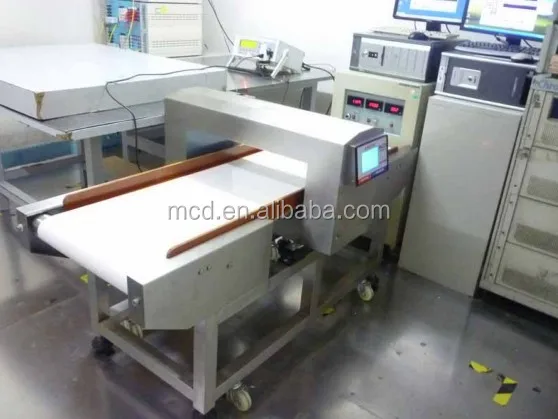

 Digital food metal detector with conveyor belt MCD-F500QD Touch screen conveyor belt metal detector

Feature and Application:

1.Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.

2.Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.

3.Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.

4.Detection accuracy over the corresponding provisions of HACCP system Detect indicators.

5.Can use with production line.

6.It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc.



Specification:

Model  MCD-F500QD/QE(150mm)
Theory Balanced Coil
Adjustment Auto and Manual
Aperture Size 400*150mm
Alarm Buzzer & Lamp
Reject system (option)
Belt Speed 20-40m/min
Power AC110V/220V 50-60HZ
Rated Output Appr. 90W
Dimension 1500mm(L)*850mm(W)*900±50mm(H)
Weight Appr. 250kg





Sensitivity is as follows:

model

MCD-F500QD/MCD-F500QE

Detection width(mm)

stardard 450

Detection height(mm)

120

150

200

250

300

350

400

sensitivity

Fe(Φmm)

0.8

1.2

1.5

2.0

2.5

3

3.5

SUS304(Φmm)

2.0

2.2

3.0

4.0

5.0

5.5

6.0

Copper and others

1.5

1.8

2.2

2.5

3.0

4.0

4.5

Machine material

Machine frame is made of SUS304.HACCP,FDA passed
