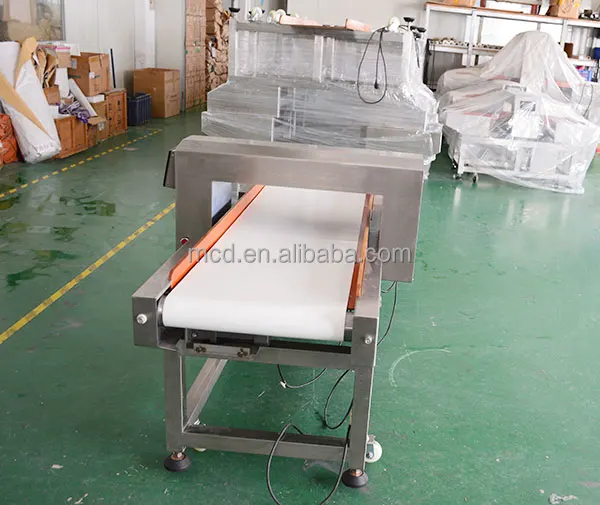

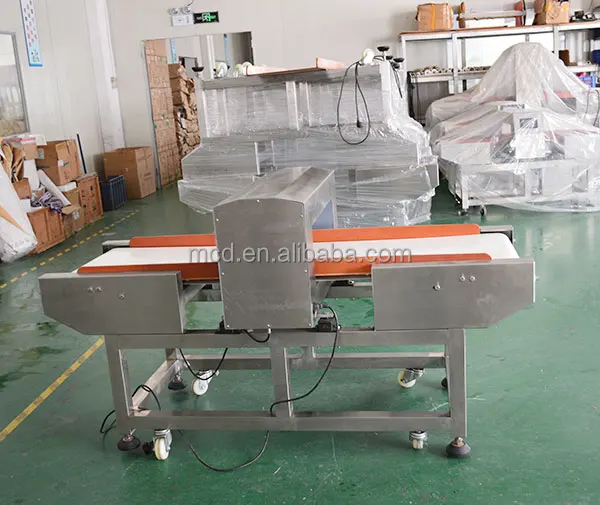

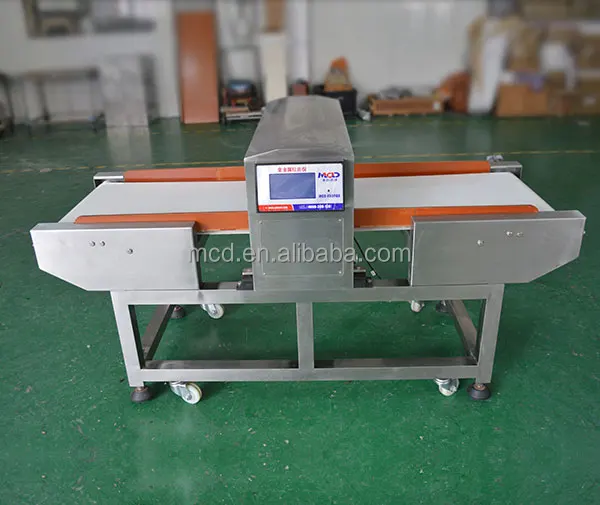

Metal Detector For Food Checking Needle Metal Detector F500QD

FOB Reference Price:Get Latest Price
US $1,955-2,753 / Boxes | 1 Box/Boxes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCD
Model Number:
MCD-F500QD
Detector Method:
Magnetic induction detection
Detecting width:
40-120CM
Detecting height:
10-50CM
Sensitivity adjust:
0-9
Alarm Method:
Buzzer&LED indicatortwinkles and shutdown antomatically
Conveyor Belt Speed:
40m/min
Power Supply:
AC100-265V,50-60HZ
Type:
Laser Metal Detector/Okm Metal Detectors MCD-F500QD
Usage:
Needle Detector for Food Industry
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden case
Port
Shenzhen
Lead Time :
1-5 working days

Metal Detector For Food Checking Needle Metal Detector F500QD










Scope of application





MCD-F500QD metal detection machines used mainly for food and other requirements of high

detection sensitivity of the industry, for the detection of inclusions or lost in the raw materials or

products of Broken Needle, wire or lead, copper, aluminum, tin, stainless steel and other metal .









Performance



1. Dual-loop design, can be detected separately iron and non-ferrous metal impurities, the high

detection sensitivity can be separately adjusted to operate a very convenient and can detect food

packaging aluminum platinum.
2. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
3. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
4. Can and weighing machines, sorting machines combination to form a pipeline automatically

detects weighing.
5. Production line can be used to connect supporting the implementation of automatic detection

pipeline.
6. Monitor the use of sound and light alarm, automatically exclude or shutdown, the operational

use of extremely reliable and user-friendly.
7. Machine using stainless steel material, anti-corrosion, easy to clean (which can be required

in accordance with the ordinary customers of steel stainless steel materials may be appropriate

to reduce costs).







PERFORMANCE



Detection style: digital intelligent with LCD display

Language : chinse / English

Motore power: 200w/400w

The main material: SUS 304







Specification parameter



Dimension of window:

25cm×30cm

30cm×30cm







Sensitivity Fe:

≥0.7mm

≥1.2mm







SUS304

≥1.2mm

≥1.5mm











Speed of transmission: 18-40 meter/minute



Normal height of inspection window cm: 10



Normal width of inspection window cm:  30



Alarm: Audible and visual with automatic stop



Can install with the auto-rejection equipment according customers requirement.



Power: AC110V/220V/380V 50/6 0Hz.



Note:

The above sensitivity judged by the machine without bearing any parts, the actual detection sensitivity has relation with the nature and the temperature of the products etc., the different types of detection which the sensitivity of metal detectors is different too, the actual detection sensitivity should be at the base of the test-block verification

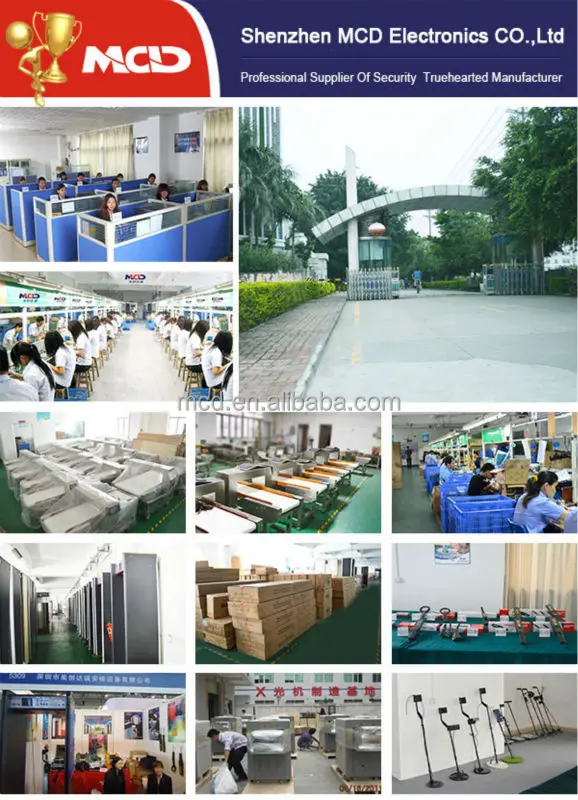

Our company
