Quick Details

  • Brand Name: MCD
  • Model Number: MCD-10080
  • Tunnel size:: 1000(w)*800(h)mm
  • real time storage image: 600000 picture
  • Image Max Resolution: 1024 * 1280 pixel
  • Operation Power: 220VAC(±10%)50±3Hz
  • Dose per Inspection: < 1.7μGy/h
  • Conveyor Max Load: 250kg
  • Resolution: < 0.101mm Copper Wire
  • Anode Voltage: 100~160Kv

Packaging & Delivery

Packaging Details wooden boxes
Delivery Time 3-5days after payment

Specifications

1.MCD-10080 luggage metal detector
2.1000(w)*800(h)mm
3.high quality , low price ,delivery ontime
4.12 months warranty

 Airport X-ray baggage scanner,large cargo x-ray scanner MCD-10080

Specifications

1.American SPELLMAN Generator
2.Japanese HAMMATSU Detector
3.Germany INTERROLL Roller



General Specification

1,Tunnel Size 1000(W)*800(H) mm

2,Conveyor Speed 0.22m/s

3,Conveyor Max Load 250kg

4,Dose per Inspection < 1.7μGy/h

5,Resolution < 0.101mm Copper Wire

6,Spatial resolution Level: dia1.3mm, Vertical: dia1.0mm

7,Penetrate  resolution Dia 0.511mm

8,Penetration 34mm Steel

9,Film Safety Guarantee ISO1600 Film

10,X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)





X-ray Generator

1,Generate direct Downward

2,Generate angle 80 degree

3,Anode Voltage 100~160Kv

4,Anode power 0.4 to 1.2mA

5,Cooling / Duty Cycle Oil Cooling /100%







Image System



1,X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 12bit Deep



2,Monitor High Resolution Color, LCD Accord, 17 inch



3,Image Processing Edge enhancement, image strengthening, image lightening,, reducing darkening,



image returning, image retrieval.



4,Image Grey Level 4096



5,Image Max Resolution 1024 * 1280 pixel



6,Image Processing 24bit for processing real time



7,Image storage Storage 60000 pictures in real time



8,Zones & Zoom 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation



9,Multi-energetic distinguish objects organic objects in orange, inorganic objects in blue, mixture  in green



10,High-energy/low energy switch from high energy to low energy



Assist to detect drug and explosive powder







Installation Data



1,Operation temperature/Humidity 0°C-45°C/20%-95%(non-condensing)



2,Storage Temperature/Humidity -20°C-60°C/20%-95%(non-condensing)



3,Operation Power 220VAC(±10%)50±3Hz



4,Power Consumption 1.0 KW (max)



5,Noise: <58db

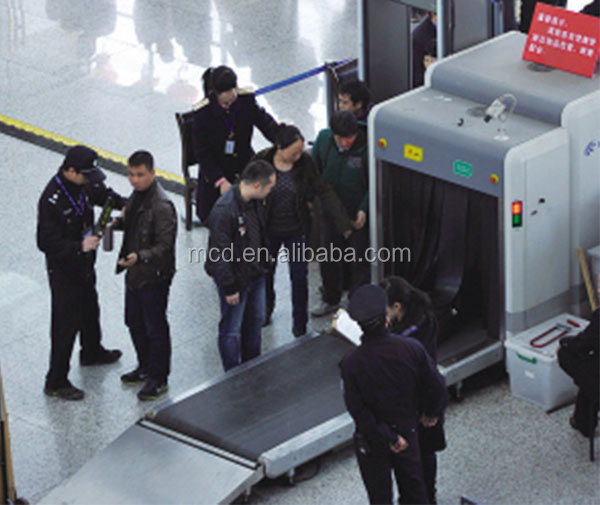

  Excellent system for airport, train station, bus station as well as security-sensitive corporate environments
