Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-5030
  • Tunnel size: 500w x 300h (mm)
  • Packaging Detail: standard export packing boxes
  • Conveyor Speed:: 0.2m/s
  • Converyor Max Load:: 50kg
  • Wire Resolution:: 0.101mm metal line
  • Steel Penetration:: 34MM armor plate
  • Film Safety:: For ISO 1600
  • Orientation:: Vertially Upward

Packaging & Delivery

Packaging Details: standard export packing boxes
Delivery Detail: 2-5days

Specifications

1.X-ray Baggage Detector machine
2.Security inspecting the dangerous in airport
3.Manufacturer service and competitive price

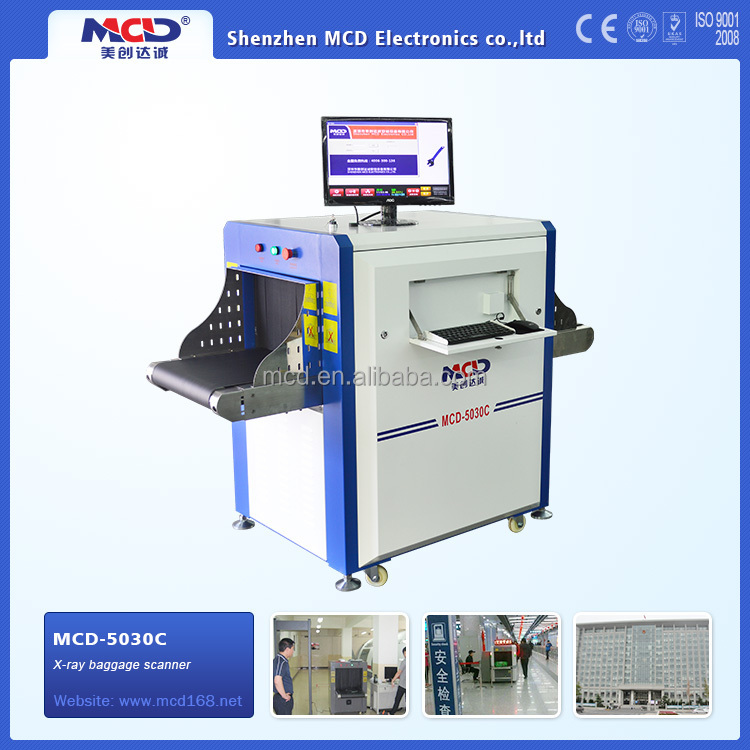

Hand Baggage X-ray Scanning Machine MCD-5030A Factory price



1.X-ray Baggage Detector machine
2.Security inspecting the dangerous in airport
3.Manufacturer service and competitive price

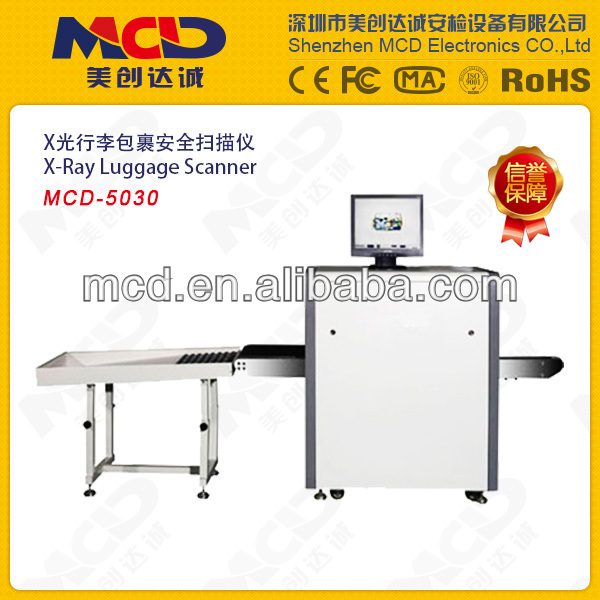

Hand Baggage X-ray Scanning Machine MCD-5030A



TECHICAL DATA:

Tunnel Size: 500(W)*300(H)MM

Conveyor Speed:0.2m/s

Converyor Max Load:50kg

single inspection dosage < 1.5µgy

Wire Resolution: 0.101mm metal line

Steel Penetration: 34MM armor plate

Film Safety: For ISO 1600

Maximum leakage radiation: <0.5u GY/H



X-RAY GENERATOR:

Orientation:  Vertially Upward

Tube Current :  0.4-1.2MA (adjustable)

Anode Voltage:100-160KV (adjustable)

Angel:  60'

Generator cooling/working periods: Sealed oil bath with forced air/100%



OPERATING ENVIRONMENT:

storage temperature :-20ºc to 60ºc

operating temperature: 0ºc to 45ºc

relative humidity :20 to 95% non-condensing

system power :220 vac (±10%) 50±3hz

power wastage :1.0 kw (max)

noise: <65db
