Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-6550
  • Tunnel Size:: 650(W)*500(H)mm
  • Conveyor Speed:: 0.22m/s
  • Conveyor Max Load:: 170kg
  • Dose per Inspection: <1.4Gy/h
  • Resolution: < 0.0787mm Copper Wire
  • Spatial resolution Level:: dia1.0mm,
  • Vertical:: dia1.0mm
  • Penetrate resolution:: Dia 0.254mm

Packaging & Delivery

Packaging Details wooden package
Delivery Time 3-5days


1.X-ray Baggage Detector machine
2.Security inspecting the dangerous in airport
3.Manufacturer service and competitive price

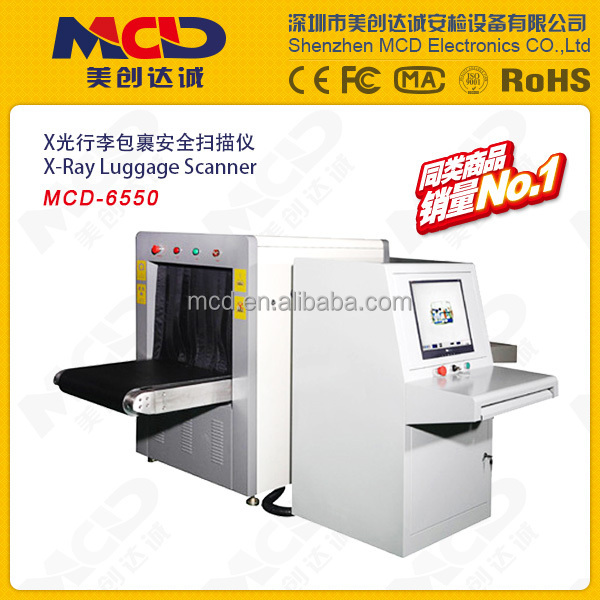

Baggage/luggage airport x-ray scanner for sale MCD-6550 x-ray baggage scanner


General Specification

Tunnel Size: 650(W)*500(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170kg

Dose per Inspection <1.4Gy/h

Resolution < 0.0787mm Copper Wire

Spatial resolution Level: dia1.0mm,

Vertical: dia1.0mm

Penetrate resolution: Dia 0.254mm

Penetration: 34mm Steel

Film Safety Guarantee ISO1600 Film

X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)


X-ray Generator

Generate direct: Upward

Generate anger: 80 degree

Anode Voltage: 100~160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%


Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

image Grey Level: 4096

Image Max Resolution: 1024 * 1280 pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

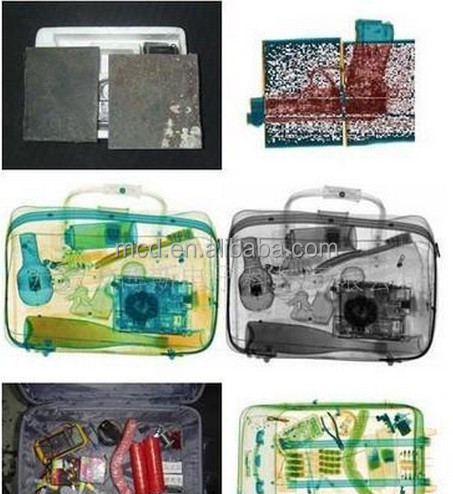

Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy : switch from high energy to low energy

Assist to detect drug and explosive powder


Installation Data

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 0.7KW(working)

Noise: <58db
