Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MCD
  • Model Number: MCD-8065
  • Usage: baggage safety check
  • Tunnel Size: 800W*650Hmm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 220 kg
  • Single inspection dosage: < 1.5uGy
  • Wire Resolution: 0.787mm metal line
  • Film Safety: For ISO 1600
  • Tube Current): 0.6~1.2MA(adjustable

Packaging & Delivery

Packaging Details: wooden case,delivery weight:860kg
Delivery Detail: 3-5days after receiving payment

Specifications

1.convey belt max load:220kg
2.penetration ability:34mm steel plate

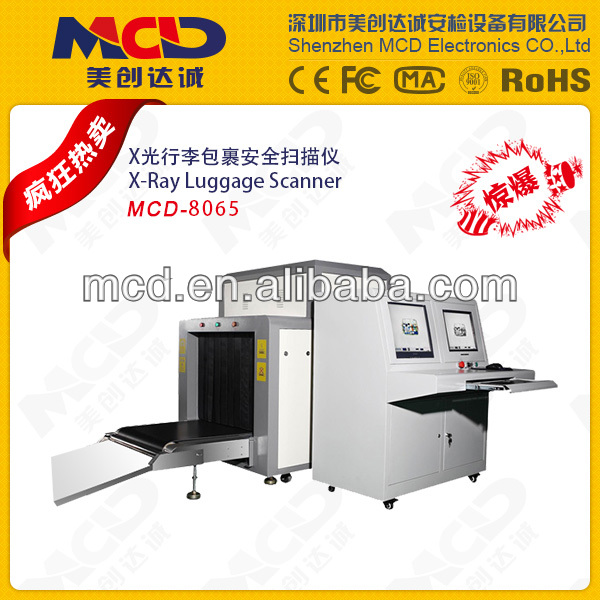

Wholesale x-ray baggage scanner MCD-8065 digital x-ray machine prices



x-ray machine types/Wholesale x-ray baggage scanner MCD-8065

hand baggage scanner/Wholesale x-ray baggage scanner MCD-8065 is used for airports, railway stations, customs, ports, mailrooms, embassies,
stadiums, exhibitions court, hospitals, prisons and other government and commercial locations

Techinical data:
Tunnel Size 800(W)×650(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 220 kg
Single inspection dosage < 1.5uGy
Wire Resolution 0.787mm metal line
Steel Penetration 34mm armor plate
Film Safety For ISO 1600
Maximum leakage radiation <0.05GY/H

X-RAY GENERATOR
Orientation Vertically Upward
Tube Current 0.6~1.2MA(adjustable)
Anode Voltage 100~160KV(adjustable)
Angle 80°
Generator cooling/working periods Sealed oil bath with forced air/100%

Operating Environment:
Storage Temperature: -40C to 60C
Operating Temperature 0C to 45C
Relative Humidity 20 to 95% non-condensing
System Power 220 VAC (±10%) 50±3HZ
Power wastage 1.0 KW (Max)
Noise <58DB

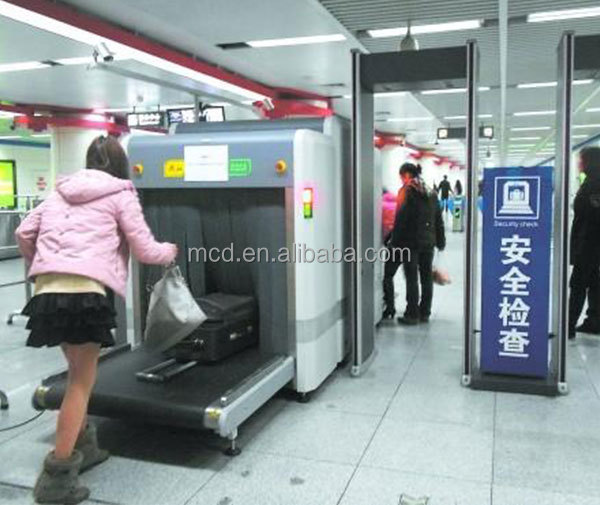

X-ray Inspection System is the ideal solution for screening parcels, briefcases, handbags, backpacks or cabin-baggage

Excellent system for airport, train station, bus station as well as security-sensitive corporate environments
